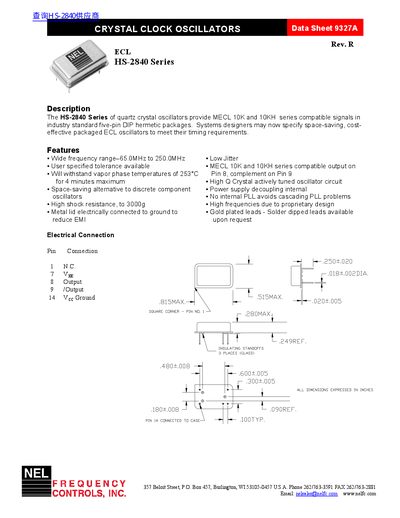

The HS-2840 Series of quartz crystal oscillators provide MECL 10K and 10KH series compatible signals in industry standard five-pin DIP hermetic packages. Systems designers may now specify space-saving, cost- effective packaged ECL oscillators to meet their timing requirements.
The NEL HS-2840 Series consists of quartz crystal oscillators providing MECL 10K and 10KH series compatible signals in industry standard five-pin DIP hermetic packages. These devices are designed as space-saving, cost-effective alternatives to discrete component oscillators for systems requiring timing signals.
| Frequency Range | 65.0MHz to 250.0MHz |
|---|---|
| Supply Voltage | -5.46V to -4.94V |
| Supply Current | 0OmA to -80 mA |
| Operating Temperature | -70°C to 125°C |
| Package Type | five-pin DIP hermetic packages |
They provide MECL 10K and 10KH series compatible signals.
The maximum frequency is 250.0MHz.
