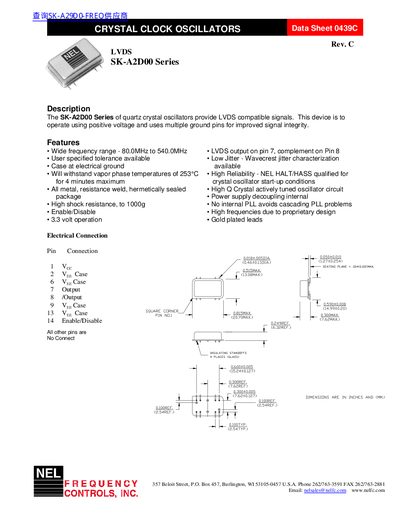

The SK-A2D00 Series of quartz crystal oscillators provide LVDS compatible signals. This device is to operate using positive voltage and uses multiple ground pins for improved signal integrity.
The SK-A2D00 Series quartz crystal oscillators deliver LVDS‑compatible signals with a wide frequency range of 80 MHz to 540 MHz. They operate from a 3.3 V supply, offer low jitter, high shock resistance, and are hermetically sealed for reliability.
The data sheet lists detailed electrical parameters such as supply current, output current, differential voltage, and rise/fall times, as well as environmental specifications including operating temperature, storage temperature, mechanical shock, and vibration limits.
| Frequency range | 80.0 MHz – 540.0 MHz |
|---|---|
| Supply voltage | 3.135 V – 3.465 V (typical 3.3 V) |
| Supply current | 0 mA – 80 mA |
| Output current | 0 mA – 50 mA |
| Differential output voltage | 250 mV – 450 mV |
| Jitter (RMS) | 3 psec |
| Operating temperature | up to 55 °C |
| Storage temperature range | -55 °C to 125 °C |
The SK‑A2D00 series operates from 80.0 MHz up to 540.0 MHz.
It requires a 3.3 V supply, with a minimum of 3.135 V and a maximum of 3.465 V.
The RMS jitter is specified as 3 psec.
