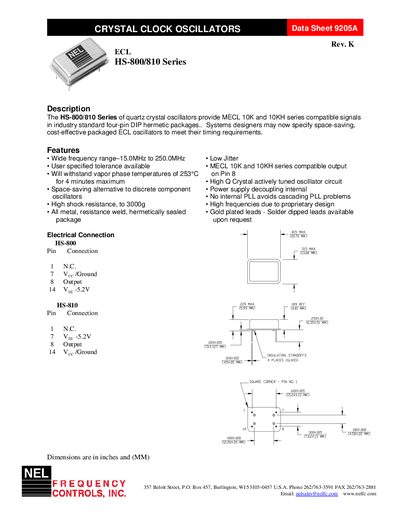

The HS-800/810 Series of quartz crystal oscillators provide MECL 10K and 10KH series compatible signals in industry standard four-pin DIP hermetic packages. Systems designers may now specify space-saving, cost-effective packaged ECL oscillators to meet their timing requirements.
The HS-800/810 Series offers ECL‑compatible quartz crystal oscillators in a space‑saving four‑pin DIP hermetic package. Features include a wide frequency range, low jitter, high shock resistance, and internal power‑supply decoupling.
The datasheet details electrical characteristics such as frequency range, supply voltage, current consumption, temperature limits, and mechanical specifications, along with test circuit information for verification.
| Frequency range | 15.0 MHz to 250.0 MHz |
|---|---|
| Supply voltage (Vee) | -5.46 V to -4.94 V (typical -5.2 V) |
| Supply current | 0.0 mA to 80 mA |
| Low‑level output current | 0.0 mA to +50.0 mA |
| Operating temperature | 70 °C |
| Storage temperature range | -55 °C to 125 °C |
| Power dissipation | 437 mW |
| Lead temperature (soldering) | 300 °C for 10 s |
The series covers frequencies from 15.0 MHz up to 250.0 MHz.
The nominal supply voltage is –5.2 V, with a range from –5.46 V to –4.94 V.
The device can operate up to 70 °C.
It can be stored between –55 °C and 125 °C.
