The OC-X87XXXXX series Micro-miniature OCXO features low-cost DIL 14 package, high vacuum sealed crystal, low power consumption (500 mW), fast warm-up time (2 minutes), Stratum3 or better stability, low aging < 3 ppm over life, very low phase noise (-160dBc/Hz TYP), HCMOS/TTL or Sine-Wave output, 8 MHz to 160 MHz frequencies available, voltage control optional and so on.

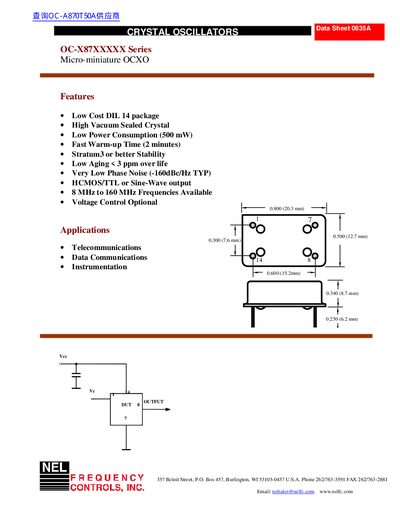

This document is a technical datasheet for the OC-X87XXXXX Series Micro-miniature Oven-Controlled Crystal Oscillators (OCXO) manufactured by Nelson Frequency Controls. The device features a low-cost DIL 14 package with high vacuum sealing, offering fast warm-up times of approximately two minutes and Stratum 3 or better stability.
| Frequency Range | 8 MHz to 160 MHz |
|---|---|
| Warm-up Time | 2 minutes to 0.3 ppm accuracy |
| Operating Temperature Range (Standard) | -30°C to 70°C |
| Package Type | DIL 14 package |
The warm-up time to reach 0.3 ppm accuracy is approximately 2 minutes.
The device supports 5V, 3.3V, and 12V supply options.
The typical phase noise is -160 dBc/Hz at greater than 10 KHz offset.
