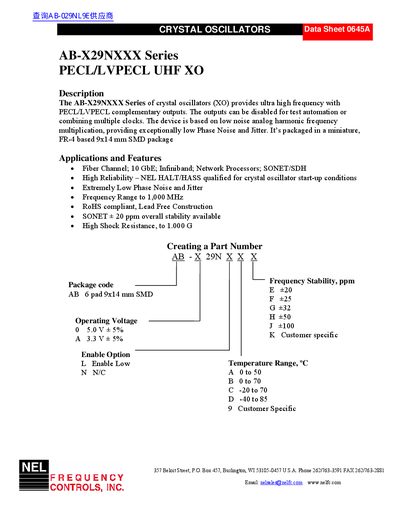

The AB-X29NXXX Series of crystal oscillators (XO) provides ultra high frequency with PECL/LVPECL complementary outputs. The outputs can be disabled for test automation or combining multiple clocks. The device is based on low noise analog harmonic frequency multiplication, providing exceptionally low Phase Noise and Jitter. It’s packaged in a miniature, FR-4 based 9x14 mm SMD package.
The AB-X29NXXxX Series of crystal oscillators provides ultra high frequency performance with PECL/LVPECL complementary outputs. The device utilizes low noise analog harmonic frequency multiplication to achieve exceptionally low Phase Noise and Jitter, making it suitable for applications such as Fiber Channel, 10 GbE, Infiniband, and SONET/SDH.
| Frequency Range | 200 to 1,000 MHz |
|---|---|
| Operating Temperature Range | -40 to +85 °C |
| Supply Voltage (Code 0) | 4.75 to 5.25 V |
| Supply Current | 60 to 80 mA |
| Output Logic Type | PECL/LVPECL |
The device is suitable for Fiber Channel, 10 GbE, Infiniband, Network Processors, and SONET/SDH.
SONET + 20 ppm overall stability is available.
