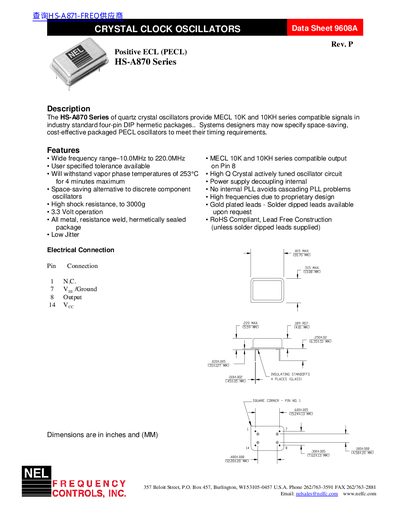

The HS-A870 Series of quartz crystal oscillators provide MECL 10K and 10KH series compatible signals in industry standard four-pin DIP hermetic packages. Systems designers may now specify space-saving, cost-effective packaged PECL oscillators to meet their timing requirements.
The HS-A870 series of quartz crystal oscillators provide MECL 10K and 10KH series compatible signals in industry‑standard four‑pin DIP hermetic packages. They offer a wide frequency range, high‑Q crystal design, low jitter, and a space‑saving alternative to discrete components.
The data sheet lists electrical characteristics such as supply voltage, output current, jitter, and frequency stability, as well as mechanical specifications including shock resistance, thermal shock, and hermetic sealing. It also includes package options, tolerance codes, and test circuit information.
| Frequency range | 10.0 MHz – 220.0 MHz |
|---|---|
| Supply voltage | 3.15 V – 3.45 V (3.3 V nominal) |
| Mechanical shock resistance | 3000 g |
| Operating temperature | 0 °C – 70 °C |
The HS-A870 series covers frequencies from 10.0 MHz to 220.0 MHz.
It operates from 3.15 V to 3.45 V, with a typical value of 3.3 V.
The device is rated for shock resistance up to 3000 g.
