Bourns Model 7091 NID provides a secure and weather resistant enclosure for single or multi-line residential or commercial application. The 7091 is designed for termination and protection various combinations of subscriber services including Twisted Pair, ADSL, VDSL and Coaxial lines.
The Bourns 7091 NID is a sealed, weather‑resistant enclosure designed for single‑ or multi‑line residential or commercial applications. It supports twisted‑pair, ADSL, VDSL, and coaxial services and can be equipped with optional sealed switching RJ11 jacks.

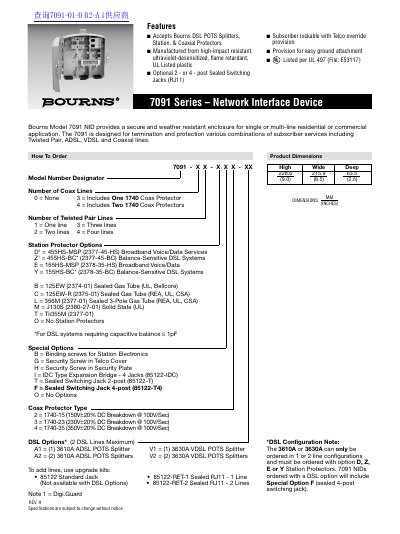

The document lists ordering codes for station protectors, coax protectors, DSL splitters, and expansion options, and includes physical dimensions (228.6 mm × 215.9 mm × 63.5 mm) and UL 497 certification information. Contact details for Asia‑Pacific, Europe, and North America are also provided.
| Dimensions (H × W × D) | 228.6 mm × 215.9 mm × 63.5 mm |
|---|---|
| UL Listing | UL 497 |
| Material | High‑impact resistant, UV‑desensitized, flame‑retardant plastic |
| Maximum DSL lines | 2 |
The device measures 228.6 mm high, 215.9 mm wide, and 63.5 mm deep.
The 7091 can be ordered for 1, 2, 3, or 4 twisted‑pair lines.
Compatible splitters are the 3610A ADSL POTS Splitter and the 3630A VDSL POTS Splitter, ordered in 1‑ or 2‑line configurations.
The device is listed per UL 497.
