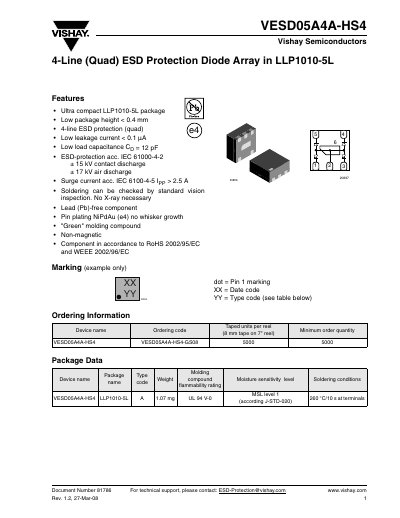

VESD05A4A-HS4 is a 4-line ESD protection diode array in LLP1010-5L package. It features low leakage current, low load capacitance, and strong ESD protection capability.
The VESD05A4A-HS4 provides four‑line (quad) ESD protection in a tiny LLP1010‑5L package with a height under 0.4 mm. It features low leakage current (<0.1 µA), low load capacitance (12 pF), and meets IEC 61000‑4‑2 and IEC 61000‑4‑5 standards for contact and air discharge protection.
Electrical characteristics include a reverse stand‑off voltage of 5 V, clamping voltage of 12 V at 2.5 A surge current, forward voltage of 2.5 V, and operation over a temperature range of –40 °C to +125 °C. The device can protect up to four lines in BiAs mode or three lines in BiSy mode, with options for parallel diode usage to increase surge capability.
| Package height | < 0.4 mm |
|---|---|
| Leakage current | < 0.1 µA |
| Load capacitance | 12 pF |
| ESD contact discharge rating | ±15 kV (contact), ±17 kV (air) |
| Surge current capability | > 2.5 A |
| Reverse stand‑off voltage (VRWM) | 5 V (BiAs), 5.5 V (BiSy) |
| Clamping voltage (VC) | 12 V at 2.5 A |
| Forward voltage (VF) | 2.5 V |
| Operating temperature | -40 °C to +125 °C |
The device is rated for ±15 kV contact discharge and ±17 kV air discharge according to IEC 61000‑4‑2.
In BiAs mode it can protect up to four lines; in BiSy mode it can protect up to three lines.
It uses the ultra‑compact LLP1010‑5L package.
The leakage current is specified as less than 0.1 µA.
