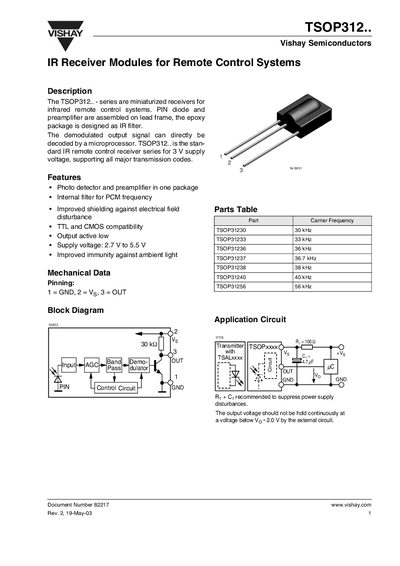

The TSOP312.. series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. TSOP312.. is the stan- dard IR remote control receiver series for 3 V supply voltage, supporting all major transmission codes.
The TSOP312 series are miniaturized infrared receiver modules designed for remote‑control systems. Each device integrates a photodiode and preamplifier in a single package with an internal filter to reject ambient light and electrical noise. The demodulated output is TTL/CMOS compatible and active‑low.
The document provides detailed electrical characteristics, absolute maximum ratings, typical performance curves, recommended data formats, and mechanical drawing dimensions. It also lists the available carrier‑frequency variants and includes Vishay’s ozone‑depleting substances policy.
| Supply Voltage | 2.7 V to 5.5 V |
|---|---|
| Maximum Output Current (Pin 3) | 10 mA |
| Operating Temperature Range | -25 °C to +85 °C |
| Power Consumption (at 85 °C) | 30 mW |
The modules operate from 2.7 V up to 5.5 V.
The maximum output current is 10 mA.
It can operate from –25 °C to +85 °C.
