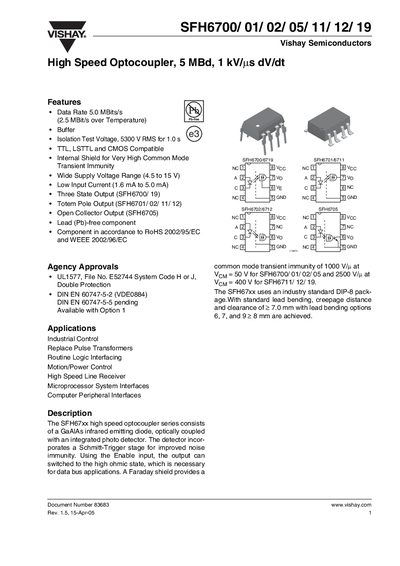

SFH6700/ 01/ 02/ 05/ 11/ 12/ 19 is a high speed optocoupler produced by Vishay Semiconductors, with a data rate of 5MBd, 1kV/µs dV/dt, TTL, LSTTL and CMOS compatible, providing three-state output (SFH6700/19), open collector output (SFH6705), and is used in industrial control, pulse transformer replacement, routine logic interface, motion/power control, high speed line receiver, microprocessor system interface, computer peripheral interface and other occasions.
The SFH6700 series from Vishay are high‑speed optocouplers with data rates up to 5 Mbps, isolation test voltage of 5300 V RMS, and a wide supply voltage range of 4.5 V to 15 V. The devices feature low input current (1.6 mA to 5.0 mA), three‑state, totem‑pole, or open‑collector outputs, and a built‑in shield for high common‑mode transient immunity.
The document provides detailed electrical characteristics, recommended operating conditions, switching timings, and common‑mode immunity data. It also includes order information, truth tables, and regulatory approvals for use in industrial control, motion/power control, and high‑speed line‑receiver applications.
| Data Rate | 5.0 MBits/s |
|---|---|
| Isolation Test Voltage | 5300 V RMS for 1.0 s |
| Supply Voltage Range | 4.5 V to 15 V |
| Input Current | 1.6 mA to 5.0 mA |
The device is rated for an isolation test voltage of 5300 V RMS for 1 second.
It operates with a supply voltage from 4.5 V up to 15 V.
