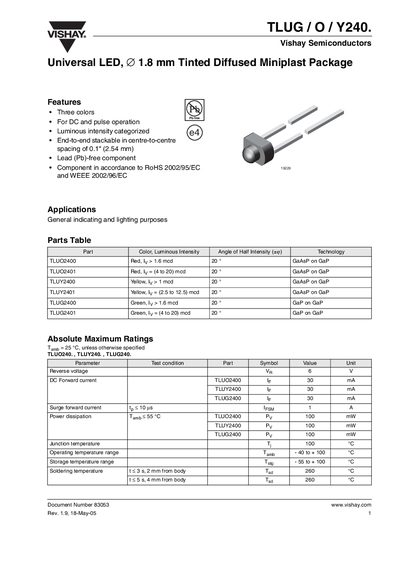

This document describes the Vishay Semiconductors TLUG / O / Y240 universal LED products, which have three colors and can be used for DC and pulse operation. They are stackable and comply with RoHS and WEEE standards.
The TLUG/O/Y240 family are universal 1.8 mm tinted diffused Miniplast LEDs offered in red, yellow and green colors. They are designed for general indicating and lighting applications and support both DC and pulse operation.
The document provides absolute maximum ratings, optical and electrical parameters, thermal resistance, and package dimensions, along with compliance statements for RoHS and ozone‑depleting substances. It also includes legal disclaimer and policy information.
| Luminous intensity (typical, 10 mA) | 16 med |
|---|---|
| Forward voltage (typical, 20 mA) | 2.4 V |
| Reverse voltage | 6 V |
| Junction temperature (max) | 100 °C |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -55 °C to +100 °C |
They operate from –40 °C up to +100 °C.
They use a universal 1.8 mm tinted diffused Miniplast package.
