The 1N5400 series is a standard recovery rectifier produced by Semiconductor Components Industries, LLC. The series has the following features: high current, small size, high surge current capability, low forward voltage drop, void-free economical plastic package, available in large quantities, meets UL 94 V-0 for flammability, and Pb-free devices.

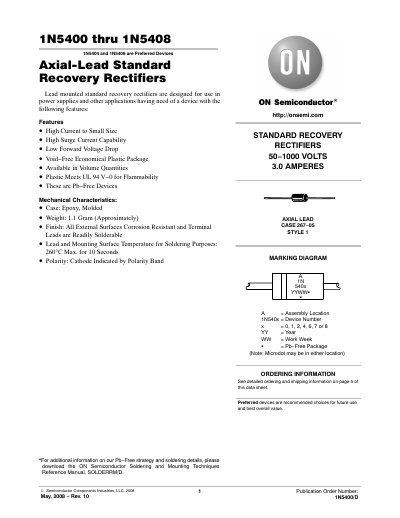

The ON Semiconductor 1N5400‑1N5408 series are axial‑lead standard recovery rectifiers designed for power‑supply applications. The datasheet provides detailed electrical, thermal and mechanical characteristics, along with recommended usage guidelines.
Key information includes maximum voltage and current ratings, thermal resistance values, typical forward voltage, and packaging details. Ordering codes for both tape‑and‑reel and bulk packaging are also listed.
| Peak Surge Current (IFSM) | 200 A (one cycle) |
|---|---|
| Thermal Resistance, Junction‑to‑Ambient (RθJA) | 53 °C/W |
They can handle a non‑repetitive peak surge current of 200 A for one cycle.
The typical thermal resistance is 53 °C/W.
