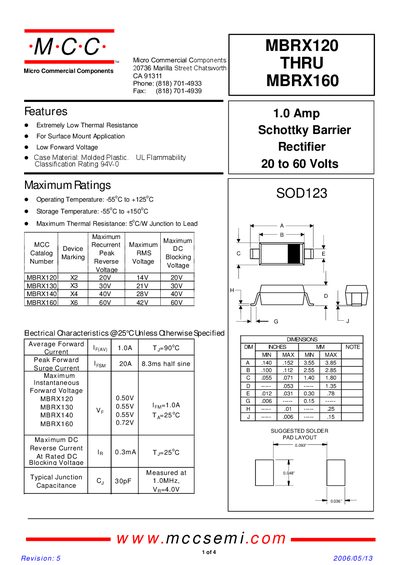

This datasheet provides dimensions, characteristics and maximum ratings for MBRX120 to MBRX160 1.0 Amp Schottky diodes.
The MBRX series are low‑forward‑voltage Schottky barrier rectifiers offered in surface‑mount packages. They feature a forward current rating of 1.0 A, extremely low thermal resistance, and operate from –55 °C to +125 °C.
The document provides typical forward voltage values (0.50 V for MBRX120, 0.55 V for MBRX140, 0.72 V for MBRX160), reverse voltage ratings up to 60 V, and characteristic curves for forward current, junction capacitance, derating, and surge current. A disclaimer notes the parts are not intended for medical, aerospace, or military use.
| Maximum Forward Current | 1.0 A |
|---|---|
| Operating Temperature Range | -55 °C to +125 °C |
| Storage Temperature Range | -55 °C to +150 °C |
| Maximum Thermal Resistance | 5 °C/W (Junction‑to‑Lead) |
| Typical Forward Voltage (MBRX120) | 0.50 V |
| Typical Forward Voltage (MBRX140) | 0.55 V |
| Typical Forward Voltage (MBRX160) | 0.72 V |
| Reverse Voltage Rating | 20 V to 60 V (depending on model) |
The devices can operate from –55 °C up to +125 °C.
The typical forward voltage for MBRX120 is 0.50 V.
