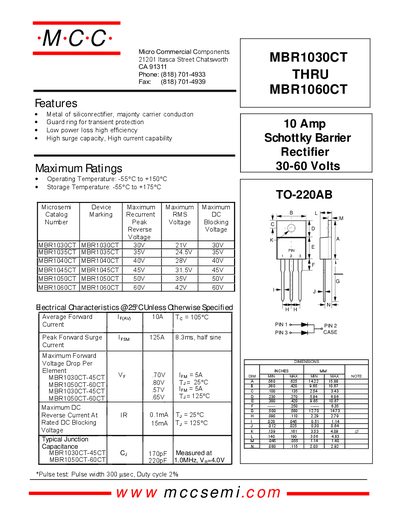

This datasheet provides the specifications of Microsemi's MBR10 series Schottky Barrier Rectifiers.
The Microsemi Schottky Barrier Rectifier series MBR1030CT‑45CT to MBR1060CT‑60CT provides low forward voltage drop, high surge capability, and a guard ring for transient protection. The device operates from –55 °C to +150 °C and can be stored down to –55 °C.
The datasheet lists maximum ratings, typical forward and reverse characteristics, junction capacitance, and derating curves. Electrical parameters such as average forward current (10 A), peak forward surge current (125 A), and forward voltage drop (0.70 V at 5 A) are provided along with characteristic curves for design reference.
| Operating Temperature | -55 °C to +150 °C |
|---|---|
| Storage Temperature | -55 °C to +175 °C |
| Maximum Recurrent Peak Reverse Voltage | 30 V to 60 V |
| Average Forward Current (I_F(AV)) | 10 A |
| Peak Forward Surge Current (I_FSM) | 125 A |
| Forward Voltage Drop (VF) | 0.70 V at 5 A |
They operate from –55 °C up to +150 °C.
The maximum recurrent peak reverse voltage is between 30 V and 60 V depending on the part.
The average forward current rating is 10 A.
The typical forward voltage drop is about 0.70 V at 5 A.
