BC327-16/25/40 PNP Plastic-Encapsulate Transistors，maximum working temperature is -55℃ to +150℃，storage temperature is -55℃ to +150℃，collector-current is -0.8A，collector-base voltage is VCBO=-50V(BC327)，VCBO=-30V(BC328)，rated power is 0.625W。

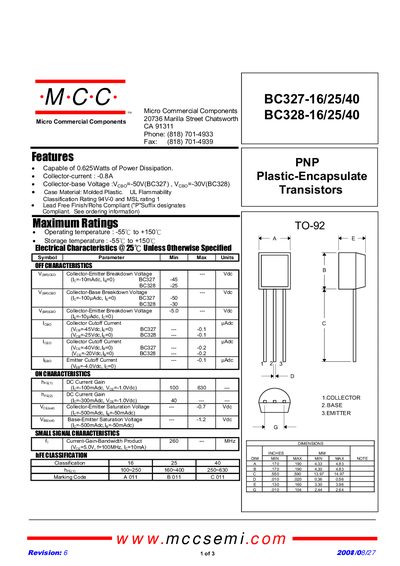

The BC327-16/25/40 is a PNP plastic‑encapsulated transistor rated for 0.625 W power dissipation and packaged in a TO‑92 case. It offers a collector‑base voltage of –50 V (BC327) and a collector‑emitter breakdown voltage of –45 V, with typical small‑signal parameters such as a DC current gain ranging from 100 to 630.
Maximum ratings include an operating temperature range of –55 °C to +150 °C and a storage range of the same limits. The datasheet also lists ordering information, packaging options, and compliance notes such as lead‑free and RoHS status.
| Power Dissipation | 0.625 W |
|---|---|
| Collector‑Emitter Breakdown Voltage (VCEO) | -45 V (BC327) |
| Collector‑Base Breakdown Voltage (VCBO) | -50 V (BC327) |
| Collector Cutoff Current (ICBO) | -0.1 µA (BC327) |
| Emitter Cutoff Current (IEBO) | -0.1 µA |
| DC Current Gain (hFE) at Ic=-100 µA, VCE=1 V | 100‑630 |
| Collector‑Emitter Saturation Voltage (VCE(sat)) | -0.7 V |
| Base‑Emitter Saturation Voltage (VBE(sat)) | -1.2 V |
| Operating Temperature Range | -55 °C to +150 °C |
It can dissipate up to 0.625 W.
The transistor operates from –55 °C to +150 °C.
The collector‑emitter breakdown voltage is –45 V.
