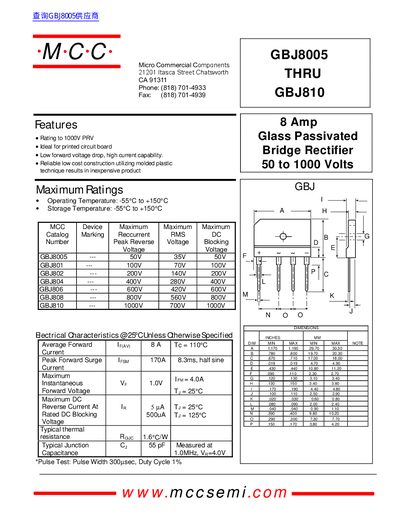

GBJ8005 thru GBJ810 are 8 Amp Glass Passivated Bridge Rectifiers with operating temperature range of -55°C to +150°C and maximum peak reverse voltage of 50 to 1000 volts. They feature low forward voltage drop and high peak forward surge current.
The GBJ8005 through GBJ810 series are glass‑passivated rectifier diodes offered by MCC. They are designed for PCB mounting and provide low forward voltage drop with high current capability.
The datasheet lists maximum ratings such as 8 A forward current, peak reverse voltages from 50 V to 1000 V, and operating temperatures from –55 °C to +150 °C, together with characteristic curves for forward current derating, junction capacitance, and surge current.
| Maximum Repetitive Forward Current | 8 A |
|---|---|
| Peak Reverse Voltage | 50 V – 1000 V (depending on model) |
| Operating Temperature Range | -55 °C to +150 °C |
| Typical Junction Capacitance | 55 pF |
| Typical Thermal Resistance | 1.6 °C/W |
The series is rated for a maximum forward current of 8 A.
The GBJ810 model can block up to 1000 V reverse voltage.
The devices operate from –55 °C up to +150 °C.
