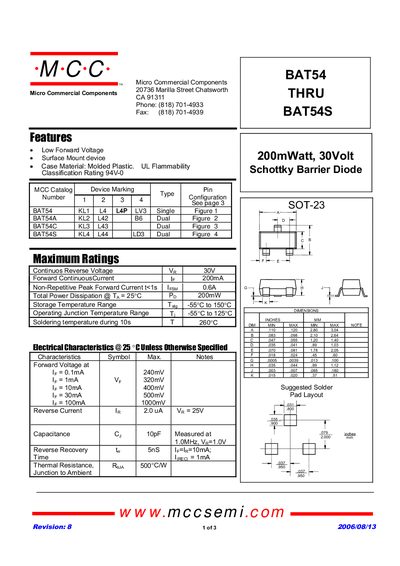

This document describes the features and characteristics of the BAT54 to BAT54S series 200mWatt, 30V Schottky Barrier Diode.
This handbook describes the BAT54, BAT54A, BAT54C, and BAT54S Schottky barrier diodes offered by Micro Commercial Components. It includes maximum ratings, electrical characteristics, pin configuration, and performance curves such as forward voltage and reverse leakage.
The document also contains important notices regarding liability, application restrictions (not for medical, aerospace, or military use), and a disclaimer of warranties. Revision information and contact details for the manufacturer are provided at the end.
| Maximum Reverse Voltage (VRRM) | 30 V |
|---|---|
| Forward Continuous Current (IF) | 200 mA |
| Peak Forward Current (IFSM) | 0.6 A |
| Total Power Dissipation (PD) | 200 mW @ 25°C |
| Storage Temperature Range | -55°C to 150°C |
| Operating Junction Temperature Range | -55°C to 125°C |
| Thermal Resistance (RθJA) | 500°C/W |
The maximum reverse voltage is 30 V.
They can handle a forward continuous current of 200 mA.
The total power dissipation is rated at 200 mW at 25 °C.
No, the products are not intended for use in medical, aerospace, or military applications.
