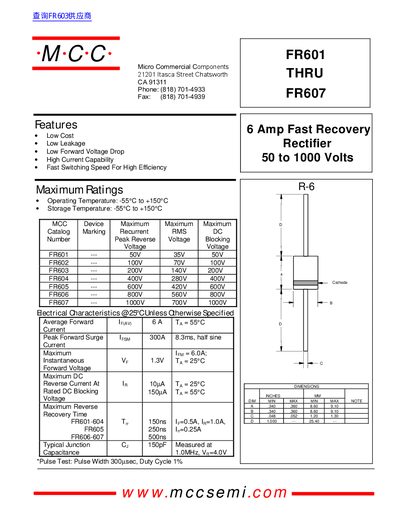

The document describes the features and characteristics of the FR601 to FR607 series 6A fast recovery rectifiers, including low cost, low leakage, low forward voltage drop, high current capability, and fast switching speed.
The FR601 through FR607 series are fast‑recovery rectifier diodes offered by Micro Commercial Components. They provide low forward voltage drop, high current capability, and fast switching speeds for efficient power conversion.
The sheet lists maximum ratings such as an operating temperature range of –55 °C to +150 °C, peak forward surge current of 300 A (8.3 ms half‑sine), and reverse blocking voltages from 50 V (FR601) up to 1000 V (FR607). Electrical characteristics include typical forward voltage of 1.3 V at 25 °C, reverse recovery times from 150 ns to 500 ns, and a typical junction capacitance of 150 pF. Graphs illustrate forward characteristics, derating curves, and reverse recovery behavior.
| Operating Temperature Range | -55 °C to +150 °C |
|---|---|
| Storage Temperature Range | -55 °C to +150 °C |
| Maximum Average Forward Current | 6.0 A |
| Peak Forward Surge Current | 300 A (8.3 ms half‑sine) |
| Typical Forward Voltage | 1.3 V at 25 °C |
| Maximum Reverse Blocking Voltage (FR607) | 1000 V |
| Reverse Recovery Time (FR606‑FR607) | 500 ns |
The FR607 diode can block up to 1000 V.
The series is rated for a peak forward surge current of 300 A for an 8.3 ms half‑sine pulse.
They operate from –55 °C up to +150 °C.
The reverse recovery time is 500 ns for FR606 and FR607.
