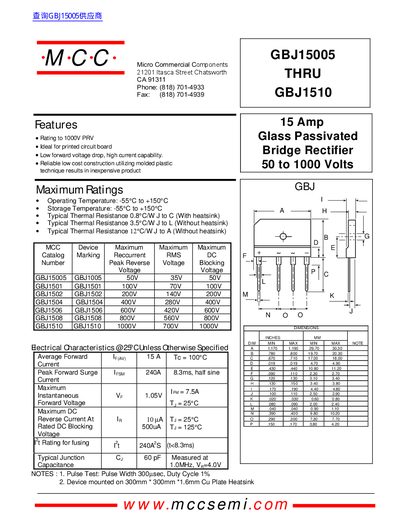

GBJ15005 to GBJ1510 15 Amp Glass Passivated Bridge Rectifier 50 to 1000 Volts
The GBJ15005 through GBJ1510 series are 15 A glass‑passivated bridge rectifiers designed for printed‑circuit‑board mounting. They offer a low forward voltage drop, high current capability, and a rugged molded‑plastic construction.
Key specifications include a peak reverse voltage of 1000 V, operating temperature range from –55 °C to +150 °C, and typical thermal resistance of 0.8 °C/W with a heatsink. The sheet also contains forward‑current derating curves, surge‑current limits, and junction‑capacitance data to aid designers in selecting the appropriate part.
| Forward Current Rating | 15 A |
|---|---|
| Peak Reverse Voltage | 1000 V |
| Operating Temperature Range | -55 °C to +150 °C |
| Thermal Resistance (with heatsink) | 0.8 °C/W |
| Thermal Resistance (without heatsink) | 3.5 °C/W |
| Typical Forward Voltage (25 °C) | 2.00‑2.40 V |
The series is rated for a continuous forward current of 15 A.
The devices are rated for a peak reverse voltage of 1000 V.
Typical thermal resistance with a heatsink is 0.8 °C/W.
