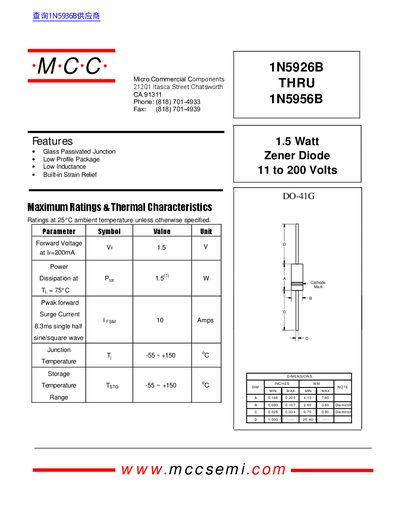

This document describes the features and characteristics of 1.5 Watt Zener Diodes with model numbers 1N5926B to 1N5956B, including glass passivated junction, low profile package, low inductance, and built-in strain relief.
The 1N5926B‑1N5956B series are glass‑passivated, low‑profile Zener diodes with built‑in strain relief, available in a DO‑41G package. They provide Zener voltages from 11 V to 200 V and feature low inductance and low dynamic impedance.
The datasheet lists maximum ratings, thermal characteristics, and detailed electrical parameters such as forward voltage, surge current, and power dissipation. Graphs illustrate Zener voltage versus temperature and dynamic impedance across the series.
