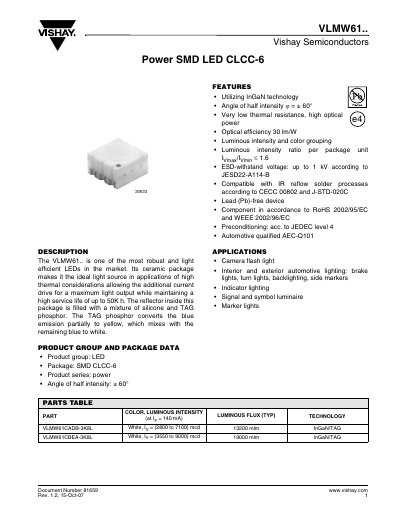

This document describes the features and characteristics of Vishay Semiconductors VLMW61.., including the use of InGaN technology, angle of half intensity ϕ = ± 60°, very low thermal resistance, high optical power, optical efficiency of 30 lm/W, etc.
The VLMW61.. is a power SMD LED in a CLCC‑6 package that uses InGaN technology for high optical power and efficiency. It is automotive qualified (AEC‑Q101) and RoHS compliant, with a ceramic package suitable for high‑thermal applications and a silicone/TAG phosphor mix for white light output.
The document lists absolute maximum ratings, optical and electrical characteristics, packaging dimensions, recommended soldering profiles, and storage guidelines. It also includes part‑group tables, forward voltage classifications, and environmental compliance statements.
| Forward current (IF) | 150 mA |
|---|---|
| Power dissipation (Ptot) | 650 mW |
| Junction temperature (Tj) | +125 °C |
| Thermal resistance junction/ambient (RthJA) | 90 K/W |
| Forward voltage (VF) typical | 2.9‑4.3 V |
| Luminous intensity range | 2800‑9000 mcd |
| Luminous flux typical | 13200‑28300 mlm |
| Angle of half intensity | ± 60° |
| Storage temperature range | -40 °C to +100 °C |
| Recommended storage temperature | 10 °C to 30 °C |
| RoHS compliance | Lead‑free, RoHS 2002/95/EC |
The maximum forward current is 150 mA.
Store the devices at 10 °C to 30 °C.
Yes, it is a lead‑free device and complies with RoHS regulations.
