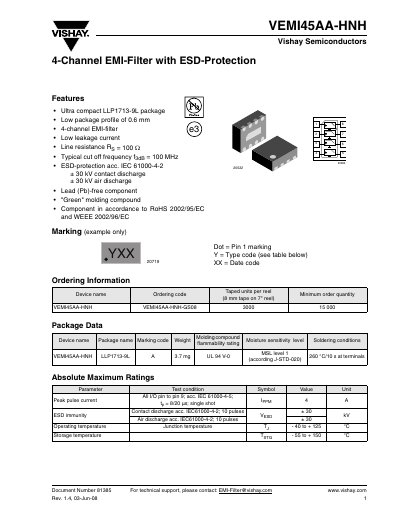

VEMI45AA-HNH 4-Channel EMI-Filter datasheet, includes product features, parameters, package size, pin definition and other information.
The VEMI45AA-HNH is a 4‑channel EMI‑filter with integrated ESD‑protection, designed for compact board‑level applications. It features a low‑profile LLP1713‑9L package (0.6 mm height) and bi‑directional clamping behavior for both signal and data lines.
Key specifications include a line resistance of 100 Ω, a typical cut‑off frequency of 100 MHz, and ESD protection of ±30 kV per IEC 61000‑4‑2. The device operates from –40 °C to +125 °C and complies with RoHS and WEEE directives. Electrical characteristics, package dimensions, and application notes are detailed in the document.
| Line resistance (RS) | 100 Ω |
|---|---|
| Cut‑off frequency (f3dB) | 100 MHz |
| ESD protection rating | ±30 kV (contact and air discharge) |
| Number of channels | 4 |
| Input capacitance (CIN) at 0 V, 1 MHz | 60 pF |
| Reverse stand‑off voltage (VRWM) | 5 V |
| Operating temperature (TJ) | -40 °C to +125 °C |
The line resistance (RS) is 100 Ω.
It provides four independent channels.
The typical cut‑off frequency is 100 MHz.
It meets IEC 61000‑4‑2 with ±30 kV contact and air discharge protection.
