The TLMA3100 is a low current SMD LED produced by Vishay Semiconductors, its features include: ultra high brightness, compatible with automatic placement equipment, conform to EIA and ICE standard packaging, suitable for infrared, vapor phase and wave solder processes, size 8mm, low power consumption, non-diffused lens, suitable for light pipes and backlighting, wide range of applications.

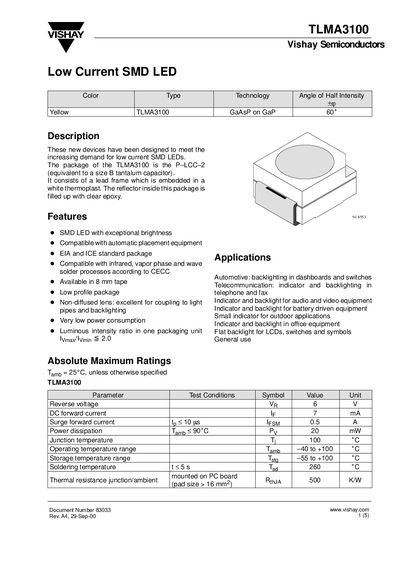

The TLMA3100 is a low‑current surface‑mount LED offered by Vishay Semiconductors. It uses a P‑LCC‑2 package (size B tantalum equivalent) with a white thermoplastic body and a clear epoxy‑filled reflector. The device is designed for high brightness, compatibility with automatic placement equipment, and low power consumption, making it suitable for backlighting, indicators, and other lighting applications.
Key electrical parameters include a reverse voltage of 6 V, a typical forward voltage of 2.2‑2.9 V at 2 mA, and a maximum forward current of 7 mA. The LED operates over a temperature range of –40 °C to +100 °C and offers luminous intensity specifications and wavelength data for the yellow variant. Mechanical dimensions, thermal resistance, and soldering guidelines are also provided.
