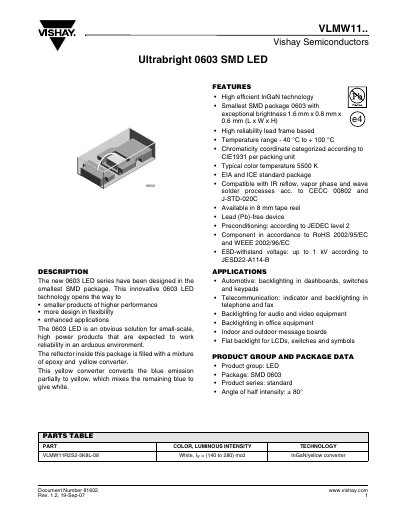

Vishay Semiconductors VLMW11 is an ultrabright 0603 SMD LED product that utilizes high efficient InGaN technology. It has a compact size of 1.6 mm x 0.8 mm x 0.6 mm and exceptional brightness. The LED is based on a high reliability lead frame and can operate in a temperature range of -40°C to +100°C. It is categorized according to CIE1931 chromaticity coordinate per packing unit and has a typical color temperature of 5500 K. The LED is compatible with various solder processes and comes in an 8 mm tape reel. It is a lead-free device and complies with RoHS and WEEE standards. The LED is suitable for automotive applications such as backlighting in dashboards, switches, and keypads, as well as telecommunication applications for indicators and backlights.
The VLMW11R2S2-5K8L-08 is a 0603 surface‑mount white LED using high‑efficiency InGaN technology. It offers a compact 1.6 mm × 0.8 mm × 0.6 mm package, typical luminous intensity of 140–280 mcd, and a forward voltage of 2.9–4.0 V at 20 mA. The device operates from –40 °C to +100 °C and complies with RoHS, WEEE, and ESD standards.
The data sheet includes package dimensions, reel and tape specifications, recommended lead‑free soldering profiles, storage guidelines, and regulatory compliance information. It also provides detailed electrical and optical characteristics, such as forward current limits, thermal resistance, and chromaticity coordinates.
| Package size | 1.6 mm × 0.8 mm × 0.6 mm (L × W × H) |
|---|---|
| Forward voltage (typical at 20 mA) | 2.9–4.0 V |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -40 °C to +100 °C |
| Power dissipation | 80 mW |
| Thermal resistance (junction‑to‑ambient, pad >16 mm²) | 480 K/W |
| ESD withstand voltage | up to 1 kV |
| Reverse voltage (max) | 5 V |
The forward voltage ranges from 2.9 V to 4.0 V at 20 mA.
It can operate from –40 °C up to +100 °C.
