The BZG03C-Series is a Zener diode produced by Vishay Semiconductors with a 5 mm SMD footprint, high reliability and a wide voltage range of 10 V to 270 V.

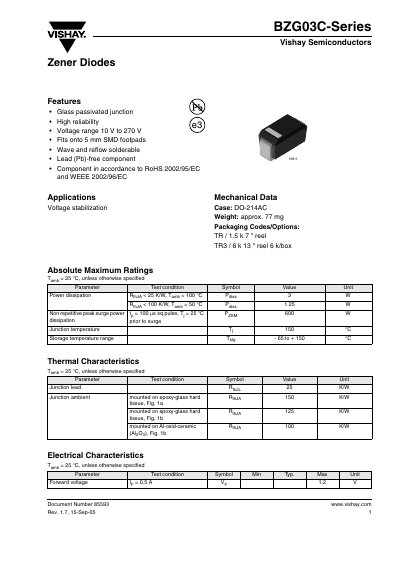

The BZG03C‑Series Zener diodes feature a glass‑passivated junction, high reliability, and a voltage range of 10 V to 270 V. They are designed for 5 mm SMD footpads, are lead‑free, and comply with RoHS 2002/95/EC and WEEE 2002/96/EC standards.
Mechanical data specify a DO‑214AC case, weighing approximately 77 mg. Electrical characteristics include a typical forward voltage of 1.2 V at 0.5 A and a maximum power dissipation of 3 W (RthJA < 25 K/W at 100 °C). The document also provides thermal resistance values, package dimensions, and environmental policy information.
| Voltage range | 10 V to 270 V |
|---|---|
| Package type | DO‑214AC |
| Weight | ≈ 77 mg |
| Junction temperature (max) | 150 °C |
| Thermal resistance (RthJA) at 100 °C | < 25 K/W |
The BZG03C series covers a voltage range from 10 V to 270 V.
Yes, they are lead‑free and meet RoHS 2002/95/EC requirements.
They are housed in a DO‑214AC surface‑mount package.
