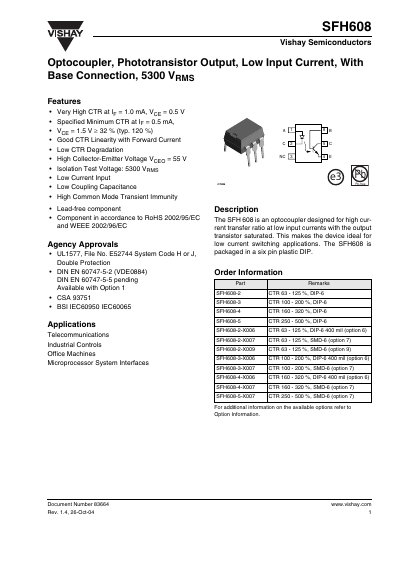

SFH 608 is an optocoupler from Vishay Semiconductors with a very high current transfer ratio (CTR) and low input current, making it ideal for low current switching applications. The device is packaged in a six pin plastic DIP.
The SFH608 is an optocoupler with a phototransistor output, designed for high current transfer ratio at low input currents. It is supplied in a six‑pin plastic DIP package and is suitable for telecommunications, industrial controls and microprocessor interfaces.
The document provides absolute maximum ratings, electrical characteristics, switching performance, package dimensions and compliance information such as RoHS and ozone‑depleting‑substance policies.
| Maximum collector‑emitter voltage (VCE) | 55 V |
|---|---|
| Forward current (IF) | 50 mA |
| Coupling capacitance (CC) | 0.60 pF |
| Total power dissipation (Pdiss) | 70 mW |
Operating temperature range is –55 °C to +100 °C; storage range is –55 °C to +150 °C.
It is packaged in a six‑pin plastic DIP.
The device is rated for a maximum VCE of 55 V.
