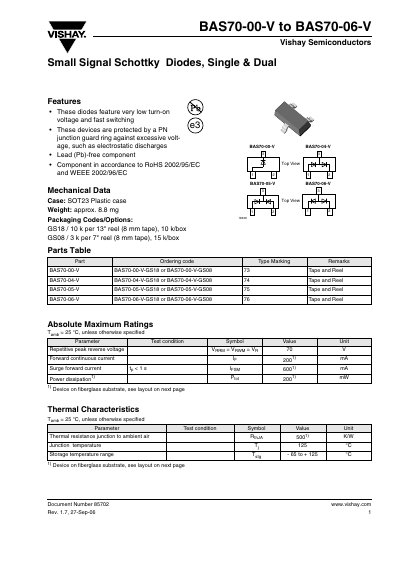

This document is the datasheet of VISHAY BAS70-00-V to BAS70-06-V small signal Schottky diodes. It provides information on features, characteristics, parameters, applications, etc.
The BAS70‑00‑V to BAS70‑06‑V family are small‑signal Schottky diodes offered in single and dual configurations. They feature very low turn‑on voltage, fast switching, and a PN‑junction guard ring that protects against electrostatic discharge. The devices are lead‑free and comply with RoHS 2002/95/EC and WEEE 2002/96/EC standards.
The datasheet lists mechanical details (SOT23 plastic case, approx. 8.8 mg weight), electrical characteristics (70 V reverse voltage, forward voltage 410 mV at 1 mA, 1 V at 15 mA, leakage current 100 nA at 50 V), thermal data (RthJA 500 K/W, Tj 125 °C) and packaging options (GS18/GS08 reels, boxes). It also includes ordering codes, a policy statement on ozone‑depleting substances, and a legal disclaimer.
| Maximum reverse voltage (VRRM) | 70 V |
|---|---|
| Forward voltage at IF=1 mA | 410 mV |
| Forward voltage at IF=15 mA | 1000 mV |
| Reverse leakage current at VR=50 V | 100 nA |
| Thermal resistance (RthJA) | 500 K/W |
| Maximum junction temperature (Tj) | 125 °C |
| Storage temperature range | -65 to +125 °C |
| Package case | SOT23 |
| Weight | ≈ 8.8 mg |
The maximum reverse voltage is 70 V.
Yes, they are lead‑free and meet RoHS 2002/95/EC requirements.
It is supplied in an SOT23 plastic case.
The diodes can be stored from –65 °C to +125 °C.
