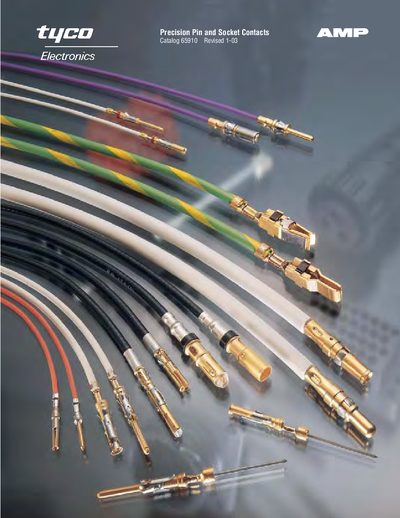

This is a PDF document about AMP's precision pin and socket contact catalog, which introduces the specifications and features of various pin and socket contacts
The Tyco 65910 catalog presents a comprehensive range of precision pin and socket contacts designed for AMP M Series, CPC, Metrimate, and “G” Series connectors. It includes signal, power, and coaxial contact families, each with details on contact type, dimensions, and applicable connector series.
Technical information covers current‑carrying capabilities, a base‑current rating method, and rating factors for connector loading and wire size. The document also provides contact‑selection charts, application tooling guidance, and technical support contact numbers for the United States, Canada, and other regions.
| Single contact current rating (Type III+ Size 16) | 13 A at 30°C T‑rise |
|---|---|
| Single contact current rating (Size 20 DF Crimp Snap‑In) | 7.5 A at 30°C T‑rise |
| Single contact current rating (Power Contact Type I Size 12) | 23 A at 30°C T‑rise |
| Single contact current rating (.125 POWERBAND) | 50 A at 30°C T‑rise |
| Single contact current rating (Size 8 4/8 Indent Crimp) | 45 A at 30°C T‑rise |
A Type III+ contact is rated for 13 amperes with a 30 °C temperature rise.
Tyco multiplies the base current by rating factors that account for connector loading percentage and wire size to obtain the final current rating.
Technical support is available by phone: USA 1‑800‑522‑6752, Canada 1‑905‑475‑6222, Mexico 01‑800‑733‑8926, and other regional numbers listed in the catalog.
