RHE600 is an overcurrent protection device produced by Tyco/Electronics Raychem Circuit Protection. The rated voltage is 16V, the rated current is 100A, the insulating material is cured flame retardant epoxy polymer, and the lead material is 20 AWG tin/lead plated copper (0.8 mm [0.032] nom. diameter).

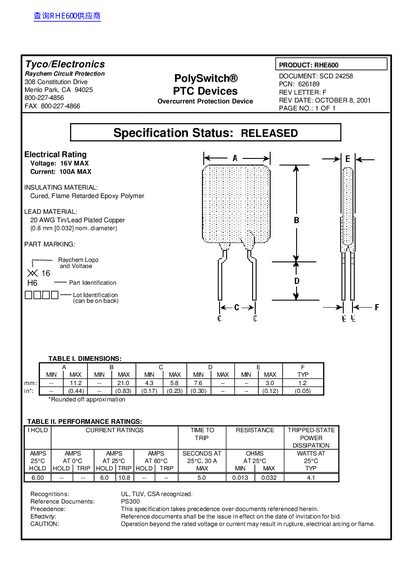

This one‑page specification describes the Tyco RHE600 overcurrent protection device, providing essential data for designers and engineers. It includes electrical limits, construction materials, dimensional tolerances, and performance ratings, and notes applicable safety recognitions.
Key data points include a maximum voltage of 16 V, a maximum current of 100 A, cured flame‑retarded epoxy polymer insulation, 20 AWG tin/lead‑plated copper leads, and dimensional ranges from 11.2 mm to 21.0 mm. The device is UL, TUV, and CSA recognized, and the document supersedes earlier references.
| Maximum Voltage | 16 V |
|---|---|
| Maximum Current | 100 A |
| Insulating Material | Cured, flame‑retarded epoxy polymer |
| Lead Material | 20 AWG tin/lead‑plated copper |
| Length (mm) | 11.2 – 21.0 |
The RHE600 is rated for a maximum voltage of 16 V.
The device can carry up to 100 A maximum current.
It uses a cured, flame‑retarded epoxy polymer for insulation.
The RHE600 is recognized by UL, TUV, and CSA.
