This document introduces the technical parameters, application scenarios, features and advantages of AMP connectors, such as the suitability for 28-16 AWG [0.08-1.2 mm2] cables, no need for wire stripping, compact and lightweight, easy to operate, suitable for prototypes or low- to medium-volume production, etc.

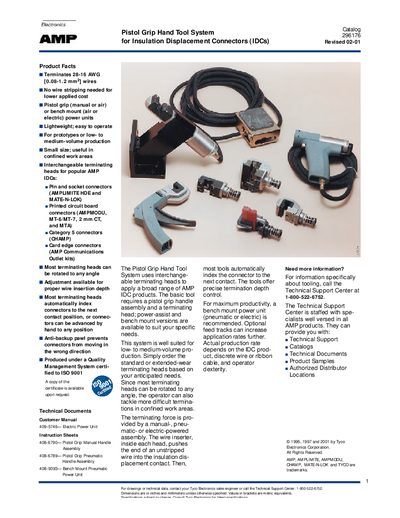

This catalog describes the Tyco Electronics Pistol Grip Hand Tool System designed for terminating insulation‑displacement connectors (IDCs). It covers the basic pistol‑grip handle, interchangeable terminating heads, and optional power‑assist units (pneumatic or electric) for low‑ to medium‑volume production.
The document provides part numbers, mechanical dimensions, performance data such as cycle time and air‑pressure requirements, and optional accessories like feed‑track options. Contact information for technical support and ordering is also included.
| Length (pistol‑grip pneumatic unit) | 3.75 in (95.2 mm) |
|---|---|
| Width (pistol‑grip pneumatic unit) | 1.12 in (28.6 mm) |
| Height (pistol‑grip pneumatic unit) | 4.00 in (101.6 mm) |
| Grip Span | 2.50 in (63.5 mm) |
| Weight (pistol‑grip pneumatic unit) | 3.5 oz (99 g) |
| Cycle Time | 0.7‑0.8 s |
| Air Pressure (pneumatic units) | 40‑70 psi (2.76‑4.83 bar) |
| Typical Application Rate (bench mount pneumatic) | 600 terminations per hour |
The pneumatic power units operate with an air pressure of 40 – 70 psi (2.76 – 4.83 bar).
Typical production is about 600 terminations per hour, with higher rates possible using optional feed‑track accessories.
The system can be operated manually, with pneumatic assist, or with an electric power unit, depending on the chosen configuration.
