MTA-100 IDC Connectors and Headers are for 2 through 28 positions, wire sizes of 22, 24, 26 and 28 AWG [0.4-0.08 mm2]. Connectors and headers (except shrouded headers) are end-to-end stackable. Connector styles include both closed end and feed-thru connectors with locking ramps, with and without polarizing tabs. Molded ribs on housing do not allow reverse mating. Posted connectors for 2 through 19 positions. Connectors preloaded with IDC contacts. All contacts are slotted for insulation displacement (IDC) terminal technique. Contacts are lubricated for fretting corrosion protection. MTA-100 system benefits include increased quality and ease of handling such as— one-step assembly, no wire stripping, no contact damage, reduced wiring errors, simpler tooling, simple maintenance and repair, meet material requirements.

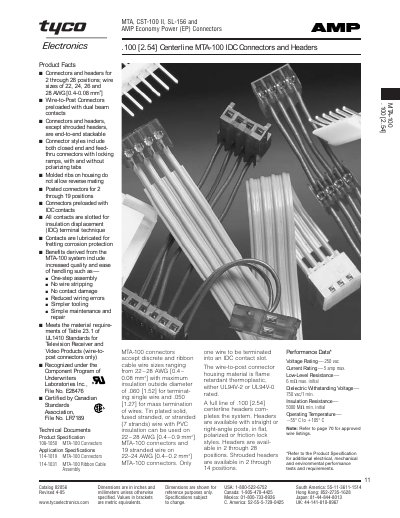

The Tyco MTA-100 catalog presents the full range of IDC connectors, headers and accessories for 2‑through‑28 positions. It details wire‑size options (22‑28 AWG), material finishes, and UL94V‑2 or UL94V‑0 housing ratings.
The document includes mating‑pair matrices, part‑number tables, and ordering instructions for closed‑end, feed‑thru and posted connectors, as well as strain‑relief covers and replacement contacts.
| Voltage Rating | 250 VAC |
|---|---|
| Current Rating | 5 A max |
| Low‑Level Resistance | 6 mΩ |
| Dielectric Withstanding Voltage | 750 VAC / 1 min |
| Insulation Resistance | 5 000 MΩ |
The connectors accept 22, 24, 26 and 28 AWG wire sizes.
Contacts are phosphor‑bronze, post‑tin plated, with optional gold plating over nickel.
Closed‑end connectors are available in 2‑through‑19 positions.
