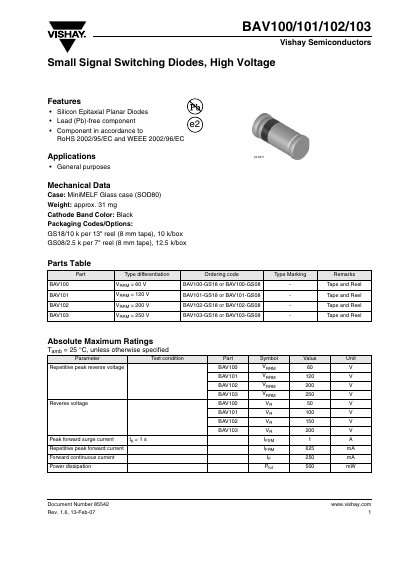

BAV100/101/102/103 is a small signal switching diode with high voltage characteristics. It is a silicon epitaxial planar diode that complies with RoHS 2002/95/EC and WEEE 2002/96/EC standards. This product is suitable for general purposes.
The Vishay BAV100/101/102/103 series are small‑signal switching diodes offered in a MiniMELF (SOD80) glass case. The document provides mechanical data, absolute maximum ratings, electrical and thermal characteristics, and packaging options.
Key specifications include reverse voltage ratings from 60 V to 250 V, forward voltage of 1.0 V at 100 mA, low reverse leakage, and RoHS‑compliant lead‑free construction. Environmental and legal notices are also included.
| BAV100 VRRM | 60 V |
|---|---|
| BAV101 VRRM | 120 V |
| BAV102 VRRM | 200 V |
| BAV103 VRRM | 250 V |
| Forward voltage (VF) at IF=100 mA | 1000 mV |
| Reverse current (IR) at VR=50 V | 100 nA |
| Package type | MiniMELF (SOD80) |
| RoHS compliant (lead‑free) | Yes |
| Thermal resistance junction‑to‑ambient (RthJA) | 500 K/W |
| Storage temperature range | -65 °C to +175 °C |
The BAV102 diode has a repetitive peak reverse voltage (VRRM) of 200 V.
They are supplied in a MiniMELF (SOD80) glass case.
Yes, they are lead‑free and meet RoHS 2002/95/EC requirements.
The forward voltage is 1000 mV (1.0 V).
