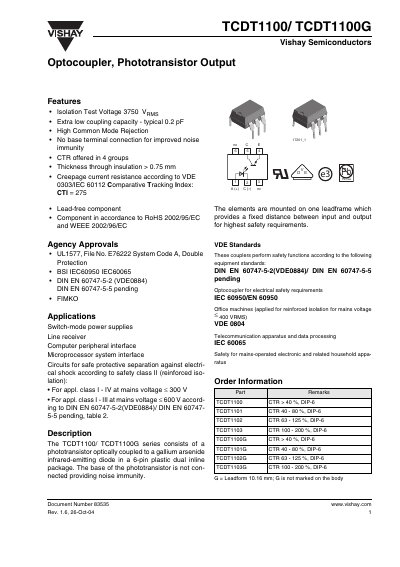

This document is about Vishay Semiconductors TCDT1100/ TCDT1100G optocoupler.
The TCDT1100/TCDT1100G series are phototransistor optocouplers with a gallium‑arsenide infrared LED in a 6‑pin DIP package. The device offers high isolation voltage, low coupling capacitance and a wide range of current transfer ratios.
The datasheet provides absolute maximum ratings, typical electrical parameters, switching times, package dimensions and compliance with safety standards such as IEC 60950, UL1577 and VDE standards. Environmental and legal notices are also included.
| Isolation Test Voltage | 3750 VRMS |
|---|---|
| Coupling Capacitance (typical) | 0.2 pF |
| Power Dissipation (typical) | 100 mW |
| Storage Temperature Range | -55 °C to +125 °C |
| Soldering Temperature (max, 2 mm from case) | ≤ 260 °C |
The isolation test voltage is 3750 VRMS.
The typical coupling capacitance is 0.2 pF.
