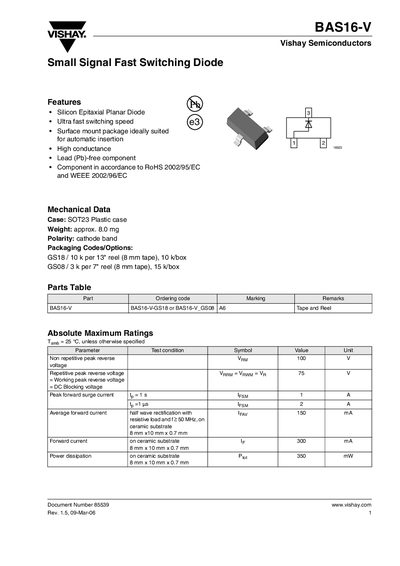

BAS16-V is a small signal fast switching diode with ultra-fast switching speed and high conductance. It is packaged in a surface mount package, ideal for automatic insertion. This component is compliant with RoHS 2002/95/EC and WEEE 2002/96/EC standards.
The BAS16-V is a small‑signal fast switching silicon epitaxial planar diode offered in a SOT‑23 plastic case. It features ultra‑fast switching speed, high conductance, lead‑free construction, and compliance with RoHS and WEEE directives. Mechanical data include a weight of approximately 8 mg and a cathode‑band polarity.
Key electrical ratings are a repetitive peak reverse voltage of 75 V, a peak forward surge current of 1 A (1 µs), an average forward current of 150 mA, and a typical forward voltage of 715 mV at 1 mA and 855 mV at 10 mA. The diode also exhibits a reverse recovery time of about 6 ns. Packaging options are available on tape‑and‑reel reels (GS18 and GS08).
| Case | SOT23 Plastic case |
|---|---|
| Weight | approx. 8.0 mg |
| Polarity | cathode band |
| Repetitive peak reverse voltage (VRRM) | 75 V |
| Peak forward surge current (If) | 1 A (1 µs) |
| Forward voltage at 1 mA (Vf) | 715 mV |
| Forward voltage at 10 mA (Vf) | 855 mV |
The maximum repetitive peak reverse voltage is 75 V.
The typical forward voltage at 10 mA is 855 mV.
It is supplied in a SOT‑23 plastic case.
