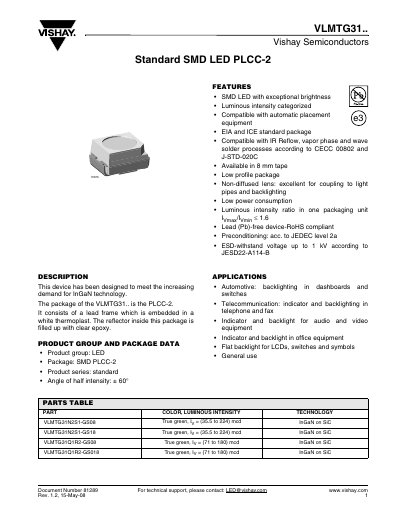

This document describes the features and characteristics of Vishay Semiconductors VLMTG31.. SMD LED PLCC-2, including exceptional brightness, compatibility with automatic placement equipment, standard package, compatibility with various solder processes, low power consumption, etc.
The VLMTG31 is a standard SMD LED packaged in a PLCC‑2 lead‑frame with a clear epoxy reflector. It is designed for automotive backlighting, telecommunications indicators, LCD backlights, and general office and audio‑video equipment. The device is lead‑free, RoHS‑compliant, and compatible with automatic placement equipment.
Key specifications include a luminous intensity range of 35.5–224 mcd (green), forward voltage of 3.2–4.2 V at 20 mA, reverse voltage rating of 5 V, power dissipation of 84 mW, and operating temperature from –40 °C to +100 °C. The LED is supplied on antistatic 8 mm blister tape and packaged in moisture‑protected reels.
