This document describes the features and characteristics of the SFH6318T/SFH6319T high-speed optocouplers, including industry-standard SOIC-8 package, high current transfer ratio, low input current, high output current, etc.

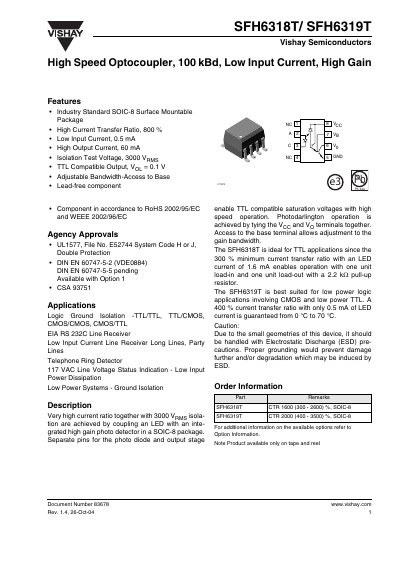

The SFH6318T and SFH6319T are high‑speed optocouplers offered in an SOIC‑8 surface‑mount package. They provide very high current transfer ratios (up to 2600 % for the SFH6318T and 3500 % for the SFH6319T) and can withstand an isolation test voltage of 3000 V RMS. The devices are TTL‑compatible, feature low input current and high output current (60 mA), and meet RoHS and WEEE requirements.
The document lists absolute maximum ratings, electrical characteristics, switching performance, and mechanical dimensions. It also contains Vishay’s environmental policy and legal disclaimer. All parameters are given for typical operating conditions and should be verified for each application.
