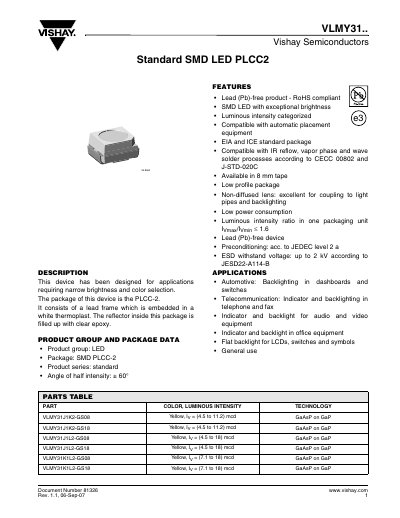

This document describes the features and characteristics of Vishay Semiconductors VLMY31.. Standard SMD LED PLCC2, including lead-free product, exceptional brightness, compatibility with automatic placement equipment, and compatibility with various soldering processes.
This datasheet describes the VLMY31.. series of standard SMD LEDs in a PLCC‑2 package. It lists key features such as lead‑free, RoHS compliance, low power consumption, and a luminous intensity ratio of ≤1.6. The device is intended for automotive, telecommunications, and general indicator/backlight applications.
Technical data include absolute maximum ratings, optical and electrical characteristics, package dimensions, and recommended storage and soldering procedures. Packaging information covers tape and reel dimensions, bar‑code labeling, and moisture‑sensitive handling instructions.
| Power dissipation (PV) | 100 mW |
|---|---|
| Junction temperature (Tj) | 100 °C |
| Operating temperature range | -40 to +100 °C |
| Luminous intensity (VLMY31J1K2) | 4.5‑11.2 mcd |
Store them at 10 °C to 30 °C with humidity ≤ 60 % RH; moisture‑sensitive devices must be kept in dry‑box conditions after opening.
