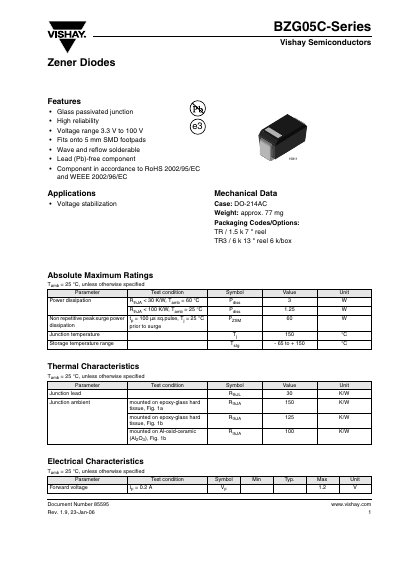

The BZG05C series is a glass-passivated germanium diode with high reliability and a voltage range of 3.3V to 100V. It is suitable for voltage stabilization applications and can be mounted on 5mm SMD footpads. It is wave and reflow solderable and is a lead (Pb)-free component in accordance with RoHS 2002/95/EC and WEEE 2002/96/EC standards.
The BZG05C-Series Zener diodes are glass‑passivated, high‑reliability devices covering a voltage range of 3.3 V to 100 V. They are designed for 5 mm SMD footpads, are lead‑free, and meet RoHS and WEEE requirements.
The datasheet lists detailed electrical parameters such as power dissipation, thermal resistance, and junction temperature, as well as mechanical specifications like the DO‑214AC case, weight, and packaging options. Legal and environmental notices are also included.
| Voltage range | 3.3 V to 100 V |
|---|---|
| Package | DO-214AC |
| Weight | ≈ 77 mg |
| Power dissipation (Pdiss) | 3 W |
| Junction temperature (Tj) | 150 °C |
| Thermal resistance (RthJA) at 60 °C | < 30 K/W |
The BZG05C-Series Zener diodes cover a voltage range from 3.3 V to 100 V.
Yes, the diodes are lead‑free and comply with RoHS 2002/95/EC and WEEE 2002/96/EC.
The diodes are supplied in a DO‑214AC (SMA) surface‑mount package.
The maximum power dissipation is 3 W (at 60 °C ambient).
