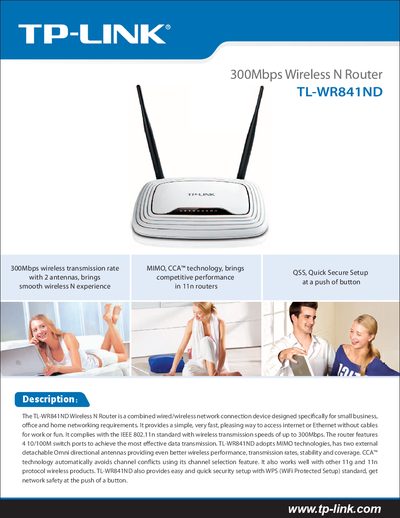

TP-Link TL-WR841ND 300Mbps Wireless N Router is a combined wired/wireless network connection device designed specifcally for small business, ofce and home networking requirements. It provides a simple, very fast, pleasing way to access internet or Ethernet without cables for work or fun. It complies with the IEEE 802.11n standard with wireless transmission speeds of up to 300Mbps. The router features 4 10/100M switch ports to achieve the most efective data transmission. TL-WR841ND adopts MIMO technologies, has two external detachable Omni directional antennas providing even better wireless performance, transmission rates, stability and coverage. CCA™ technology automatically avoids channel conficts using its channel selection feature. It also works well with other 11g and 11n protocol wireless products. TL-WR841ND also provides easy and quick security setup with WPS (WiFi Protected Setup) standard, get network safety at the push of a button.
The TL‑WR841ND is a combined wired/wireless router designed for small‑business, office and home networking. It supports IEEE 802.11n/g/b standards with up to 300 Mbps wireless speed, four 10/100 Mbps LAN ports, a WAN port, and detachable 3 dBi omni‑directional antennas for improved coverage. Quick Secure Setup (QSS) and WPS allow easy, button‑press security configuration.
The manual lists technical specifications such as frequency range (2.4‑2.4835 GHz), transmit power (20 dBm), power supply (9 VDC/0.6 A switching PSU), operating temperature (0 °C‑40 °C), dimensions (192 × 130 × 33 mm) and supported modulation schemes (DBPSK, DOPSK, CCK, OFDM, 16‑QAM, 64‑QAM). It also describes supported features like UPnP, DDNS, static routing, VPN pass‑through, firewall filtering and firmware updates via the web interface.
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| LAN Ports | 4 × 10/100 Mbps auto‑sensing |
| WAN Port | 1 × 10/100 Mbps auto‑sensing |
| Maximum 802.11n Rate | 270 Mbps |
| Maximum 802.11g Rate | 54 Mbps |
| Frequency Range | 2.4‑2.4835 GHz |
| Antenna | 2 × detachable 3 dBi omni‑directional |
| Modulation Technology | DBPSK, DOPSK, CCK, OFDM, 16‑QAM, 64‑QAM |
| Power Supply | 9 VDC / 0.6 A switching PSU |
| Operating Temperature | 0 °C – 40 °C |
| Storage Temperature | -40 °C – 70 °C |
| Dimensions | 192 × 130 × 33 mm |
| Relative Humidity | 10 % – 90 % non‑condensing |
The router supports wireless transmission speeds of up to 300 Mbps.
It provides four 10/100 Mbps auto‑sensing LAN ports.
Yes, it supports QSS, allowing security setup with the push of a button.
It uses a 9 VDC/0.6 A switching power supply.
