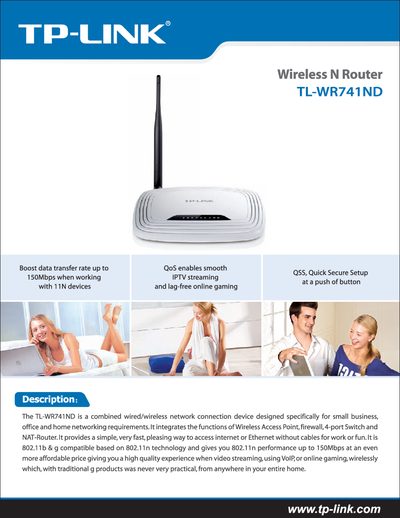

The TL‑WR741ND is a combined wired/wireless router designed for home and small‑business networking. It integrates a wireless access point, firewall, 4‑port switch and NAT router in a single device.
The manual explains Quick Secure Setup (QSS), wireless performance up to 150 Mbps on the 2.4 GHz band, antenna options, power supply requirements, environmental operating limits, and configuration features such as PPPoE, DHCP, static IP, UPnP, DDNS, VPN pass‑through, and firewall settings.
| Wireless Standard | 802.11b/g compatible, based on 802.11n |
|---|---|
| Maximum Data Rate | Up to 150 Mbps |
| Frequency Range | 2.4‑2.4835 GHz |
| Transmit Power | 20 dBm (EIRP total) |
| Antenna | 5 dBi detachable omni‑directional antenna |
| Ethernet Ports | 4 × 10/100 M auto‑sensing RJ45 (Auto MDI/MDIX) + 1 × 10/100 M auto‑sensing RJ45 |
| Power Supply | 9 V DC / 0.6 A switching PSU |
| Operating Temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Storage Temperature | -40 °C ~ 70 °C (-40 °F ~ 158 °F) |
| Dimensions | 6.9 × 4.6 × 1.3 in. (174 × 118 × 33 mm) |
The router supports up to 150 Mbps wireless data rate.
It has four 10/100 M auto‑sensing RJ45 ports plus one additional 10/100 M auto‑sensing RJ45 port.
It requires a 9 V DC, 0.6 A switching power supply.
