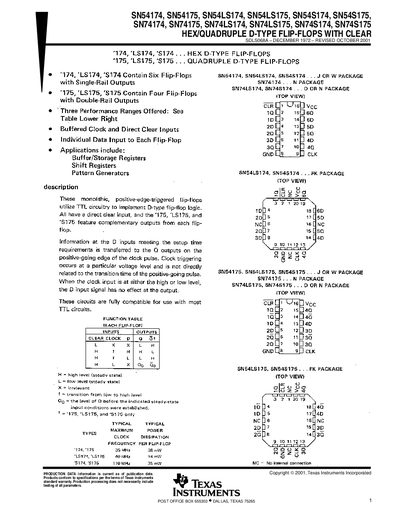

This document is a production data manual for SN54174, SN54175, SN54LS174, SN54LS175, SN54S174, SN54S175, SN74174, SN74175, SN74LS174, SN74LS175, SN74S174, SN74S175 HEX/QUADRUPLE D-TYPE FLIP-FLOPS WITH CLEAR SDLS068A.
This handbook provides detailed information on the SN54174 and SN54175 hex/quadruple D‑type flip‑flops with clear, covering electrical characteristics, absolute maximum ratings, and recommended operating conditions. It also includes pin‑out diagrams, logic symbols, and package option addenda for various device packages.
Additional sections describe package dimensions, material information, and important legal notices from Texas Instruments. The document is intended for designers and engineers who need precise data for circuit implementation and component selection.
| Maximum clock frequency (SN54174) | 35 MHz |
|---|---|
| Propagation delay (clear to high) typical | 20 ns |
The SN54174 can operate up to 35 MHz clock frequency.
The SN54174 contains six D‑type flip‑flops with single‑rail outputs.
