The CD4013B series is a dual D-type flip-flop from Texas Instruments (TI), which includes 14-lead hermetic dual-in-line ceramic packages, 14-lead dual-in-line plastic packages, 14-lead small-outline packages, 14-lead thin shrink small-outline packages and other packaging forms.

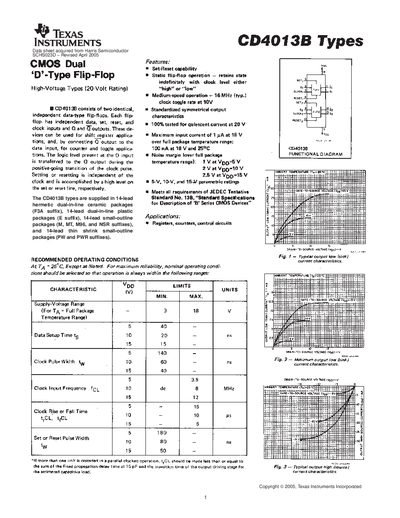

The CD4013B is a dual D‑type flip‑flop integrated circuit manufactured by Texas Instruments. This datasheet provides the electrical specifications, packaging options, and mechanical data needed for design and production.
It includes information on the various 14‑lead package types, eco‑plan status (Pb‑Free, Green), and tape‑and‑reel dimensions, helping engineers select the appropriate form factor and ensure compliance with RoHS requirements.
| Package options | 14‑lead hermetic dual‑in‑line ceramic (F3A), 14‑lead dual‑in‑line plastic (E), 14‑lead small‑outline (M, MT, M96, NSR), 14‑lead thin shrink small‑outline (PW, PWR) |
|---|---|
| Device status | ACTIVE |
| PW package mechanical data | Plastic small‑outline, 14 pins, dimensions 0.65 mm × 0.10 mm × 0.25 mm |
The CD4013B is available in 14‑lead hermetic dual‑in‑line ceramic (F3A), 14‑lead dual‑in‑line plastic (E), 14‑lead small‑outline (M, MT, M96, NSR) and 14‑lead thin shrink small‑outline (PW, PWR) packages.
Yes, the CD4013B is listed as ACTIVE, meaning it is recommended for new designs.
