SN74F174A HEX D-TYPE FLIP-FLOP WITH CLEAR is an integrated circuit chip produced by TI. It contains 6 single-rail output D flip-flops, buffered clock and direct clear inputs, and can be used in buffer/storage registers, shift registers, and pattern generators.
The SN74F174A is a monolithic, positive‑edge‑triggered hex D‑type flip‑flop that includes a direct clear (CLR) input and buffered clock. Information at the D inputs meeting setup time requirements is transferred to the outputs on the rising edge of the clock. The device is characterized for operation from 0 °C to 70 °C.

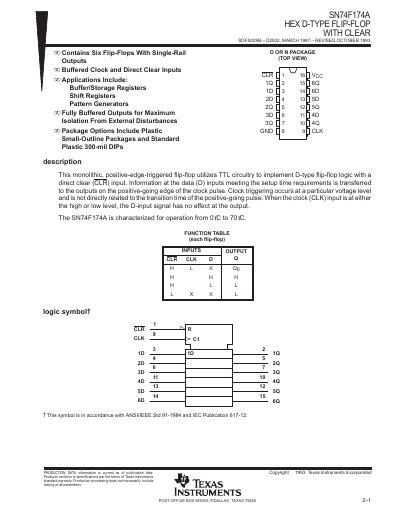

The datasheet provides absolute‑maximum ratings, recommended operating conditions, electrical characteristics, timing requirements, and packaging details. Available in SOIC and PDIP packages, the part supports supply voltages from 4.5 V to 5.5 V and offers various RoHS‑compliant options.
| Number of flip‑flops | Six |
|---|---|
| Operating temperature range | 0 °C to 70 °C |
| Maximum low‑state output current | 40 mA |
| Maximum high‑level output current | -1 mA |
It is specified for operation from 0 °C to 70 °C.
The SN74F174A contains six flip‑flops.
