MAX9110/MAX9112 is a low-power, low-EMI, high-resolution image application single/dual channel LVDS transmitter supporting 500Mbps high-speed data transmission.
The MAX9110 (single) and MAX9112 (dual) LVDS line drivers are low‑voltage differential signaling transmitters designed for high‑speed applications such as laser printers, digital copiers, and telecom equipment. They operate from a single +3.3 V supply, deliver ultra‑low 250 ps pulse skew, and support data rates up to 500 Mbps while consuming minimal power.

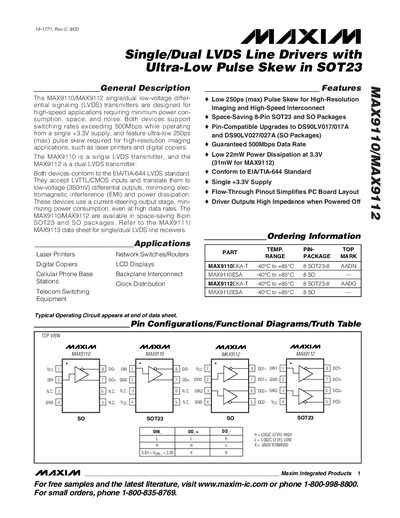

The devices are offered in compact 8‑pin SOT23 and SO packages and include features such as flow‑through pinout, high‑impedance output when powered off, and current‑steering architecture that reduces EMI. The datasheet details absolute maximum ratings, electrical and AC characteristics, typical operating curves, pin configurations, layout recommendations, and recommended termination resistor values (75 Ω–150 Ω).
| Data Rate | 500 Mbps (guaranteed) |
|---|---|
| Pulse Skew | 250 ps (max) |
| Supply Voltage | +3.3 V (single supply) |
| Power Dissipation (MAX9110) | 22 mW at 3.3 V |
| Power Dissipation (MAX9112) | 31 mW at 3.3 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Options | 8‑pin SOT23 and SO |
Both devices guarantee a data rate of up to 500 Mbps.
The MAX9110 dissipates about 22 mW when powered at 3.3 V.
Both ICs are offered in 8‑pin SOT23 and SO packages.
