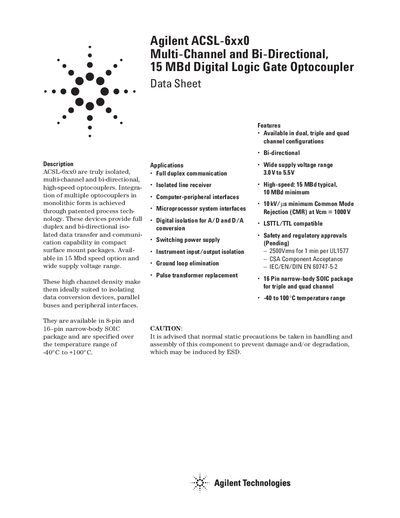

This data sheet introduces the features and characteristics of Agilent ACSL-6xx0 multi-channel and bi-directional, 15 MBd digital logic gate optocouplers.
The ACSL-6xx0 family provides truly isolated, multi‑channel and bi‑directional high‑speed optocouplers. They are offered in dual, triple and quad channel configurations and come in 8‑pin and 16‑pin narrow‑body SOIC packages. The devices support full‑duplex communication and are suitable for isolating data conversion devices, parallel buses, peripheral interfaces, and switching power supplies.
Key electrical characteristics include a supply voltage range of 3.0 V to 5.5 V, operating temperature from –40 °C to +100 °C, and a typical data rate of 15 MBd (10 MBd minimum). The optocouplers meet safety approvals such as UL1577 (2500 Vrms for 1 min) and IEC/EN/DIN EN 60747‑5‑2.
| Supply Voltage Range | 3.0 V to 5.5 V |
|---|---|
| Operating Temperature Range | -40 °C to +100 °C |
| Maximum Data Rate | 15 MBd (typical), 10 MBd (minimum) |
| Isolation Voltage (UL1577) | 2500 Vrms for 1 min |
| Input Reverse Breakdown Voltage | 5.0 V |
The devices operate from 3.0 V up to 5.5 V.
Typical data rate is 15 MBd, with a minimum of 10 MBd.
It is specified for –40 °C to +100 °C.
It is tested for 2500 Vrms isolation for 1 minute.
