Maxim MAX9390/MAX9391 Dual 2x2 Crosspoint Switches Datasheet

The MAX9390/MAX9391 dual 2 x 2 crosspoint switches perform high-speed, low-power, and low-noise signal distribution. The MAX9390/MAX9391 multiplex one of two differential input pairs to either or both low-voltage differential signaling (LVDS) outputs for each channel. Independent enable inputs turn on or turn off each differential output pair. Four LVCMOS/LVTTL logic inputs (two per channel) control the internal connections between inputs and outputs. This flexibility allows for the following configurations: 2 x 2 crosspoint switch, 2:1 mux, 1:2 splitter, or dual repeater. This makes the MAX9390/MAX9391 ideal for protection switching in fault-tolerant systems, loopback switching for diagnostics, fanout buffering for clock/data distribution, and signal regeneration. Fail-safe circuitry forces the outputs to a differential low condition for undriven inputs or when the common-mode voltage exceeds the specified range. The MAX9390 provides high-level input fail-safe detection for LVDS, HSTL, and other GND-referenced differential inputs. The MAX9391 provides low-level input fail-safe detection for LVPECL, CML, and other VCC-referenced differential inputs. Ultra-low 82ps(P-P) (max) pseudorandom bit sequence (PRBS) jitter ensures reliable communications in high-speed links that are highly sensitive to timing error, especially those incorporating clock-and-data recovery, or serializers and deserializers. The high-speed switching performance guarantees 1.5 to 15.8 Gb/s of bandwidth, with eye patterns sufficient to ensure high reliability.

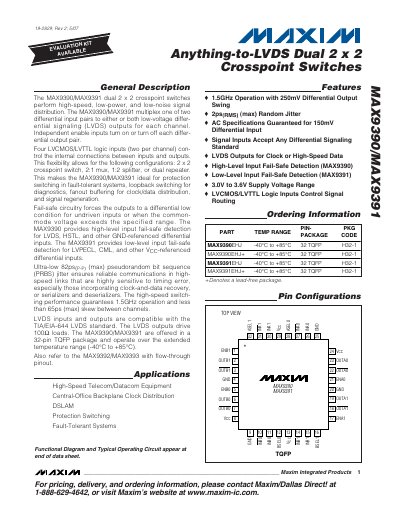

Maxim MAX9390/MAX9391 Dual 2x2 Crosspoint Switches Datasheet - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
14
File format
PDF
File size
223 KB
Published
08 May, 2012
Updated
30 September, 2023
MD5 checksum
1FDB388B8F7C58F02F79AE4901D119E9

About this manual

The MAX9390 and MAX9391 are dual 2 × 2 crosspoint switches that route differential inputs to LVDS outputs. They support high‑speed, low‑power operation up to 1.5 GHz and include fail‑safe circuitry that forces a low differential output when inputs are undriven or out of range.

Key features include independent enable pins for each output pair, four LVCMOS/LVTTL control inputs, and flexible configuration as a crosspoint switch, 2:1 mux, 1:2 splitter, or dual repeater. The devices are supplied in a 32‑pin TQFP package and operate from –40 °C to +85 °C.
