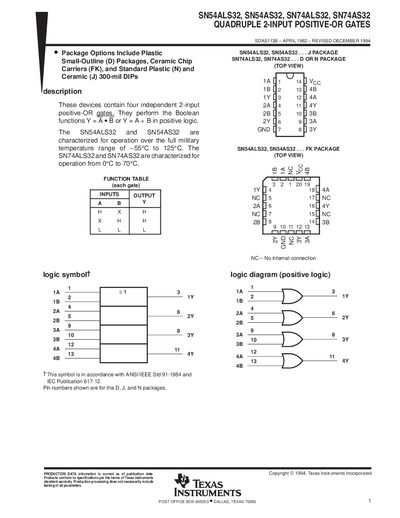

SN54ALS32, SN54AS32, SN74ALS32, SN74AS32 QUADRUPLE 2-INPUT POSITIVE-OR GATES SDAS113B. This document is about the datasheet of SN54ALS32, SN54AS32, SN74ALS32, SN74AS32 4-channel 2-input positive OR gates
The SN54ALS32, SN54AS32, SN74ALS32, and SN74AS32 devices each contain four independent 2‑input positive‑OR gates that implement the Boolean function Y = A + B in positive logic. The SN54 series are qualified for the full military temperature range (‑55 °C to 125 °C) while the SN74 series are specified for commercial temperature ranges (0 °C to 70 °C).
These parts are offered in multiple package styles, including Plastic Small‑Outline (SO), Ceramic Chip‑Carrier (FK), and standard Plastic (N) and Ceramic (J) DIP packages. Key electrical parameters include a supply voltage of 4.5 V to 5.5 V, VIH of 2 V, VIL of 0.8 V, and output currents of –0.4 mA (high) to 8 mA (low).
| High‑level output current (IOH) | –0.4 mA |
|---|---|
| Low‑level output current (IOL) | 4 mA – 8 mA |
| Operating temperature range (SN54 series) | ‑55 °C to 125 °C |
| Operating temperature range (SN74 series) | 0 °C to 70 °C |
| Maximum input voltage | 7 V |
SN54ALS32 and SN54AS32 are rated from –55 °C to 125 °C, while SN74ALS32 and SN74AS32 are rated from 0 °C to 70 °C.
They are offered in Plastic Small‑Outline (SO), Ceramic Chip‑Carrier (FK), and standard Plastic (N) and Ceramic (J) DIP packages.
The absolute maximum input voltage is 7 V.
