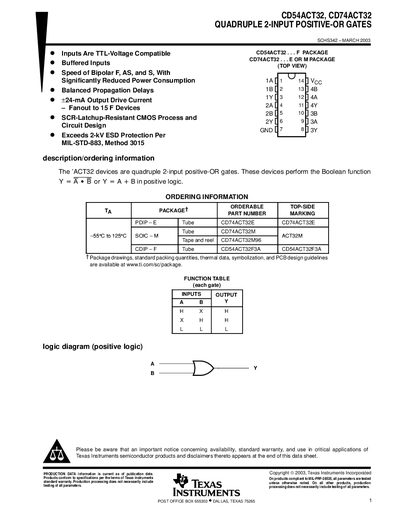

CD54ACT32 and CD74ACT32 are quadruple 2-input positive-OR gates. These devices perform the Boolean function Y = A • B or Y = A + B in positive logic.
The CD54ACT32 and CD74ACT32 devices are quadruple 2‑input positive‑OR gates that implement the Boolean function Y = A OR B. They feature TTL‑voltage compatible inputs, reduced power consumption, balanced propagation delays, and up to 2 kV ESD protection.
The data sheet provides absolute maximum ratings, recommended operating conditions, electrical characteristics, package options, and mechanical dimensions. Ordering information includes PDIP, SOIC, and tape‑and‑reel formats, with RoHS‑compliant and green packaging options.
| Supply voltage range (VCC) | 4.5 V to 5.5 V |
|---|---|
| High‑level input voltage (VIH) | 2 V |
| Low‑level input voltage (VIL) | 0.8 V |
| Output drive current | ±24 mA |
| ESD protection | >2 kV |
