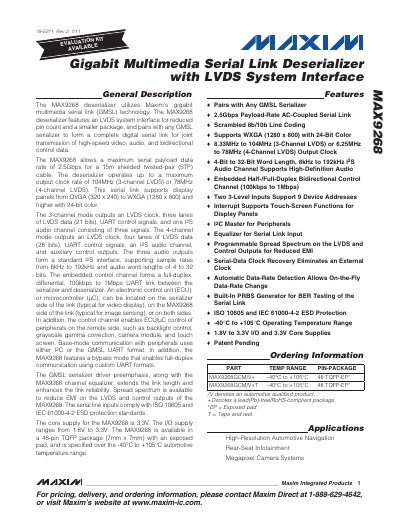

The MAX9268 deserializer utilizes Maxim’s gigabit multimedia serial link (GMSL) technology. It features an LVDS system interface for reduced pin count and a smaller package, and pairs with any GMSL serializer to form a complete digital serial link for joint transmission of high-speed video, audio, and bidirectional control data.
The MAX9268 is a gigabit multimedia serial link (GMSL) deserializer with an LVDS system interface, enabling high‑speed video, audio, and bidirectional control data transmission over a single cable.
The document lists detailed electrical ratings, pin assignments, timing parameters, and typical operating characteristics, together with package information and application notes for automotive navigation, rear‑seat infotainment, and camera systems.
| Maximum serial payload data rate | 2.5 Gbps |
|---|---|
| Maximum output clock rate (3‑channel LVDS) | 104 MHz |
| Maximum output clock rate (4‑channel LVDS) | 78 MHz |
| Package | 48‑pin TQFP (7 mm × 7 mm) with exposed pad |
| Operating temperature range | -40 °C to +105 °C |
| Core supply voltage | 3.3 V |
| I/O supply voltage range | 1.8 V to 3.3 V |
It supports up to 2.5 Gbps over a 15 m shielded twisted‑pair cable.
It is supplied in a 48‑pin TQFP (7 mm × 7 mm) with an exposed pad.
It is rated for -40 °C to +105 °C operating temperature.
