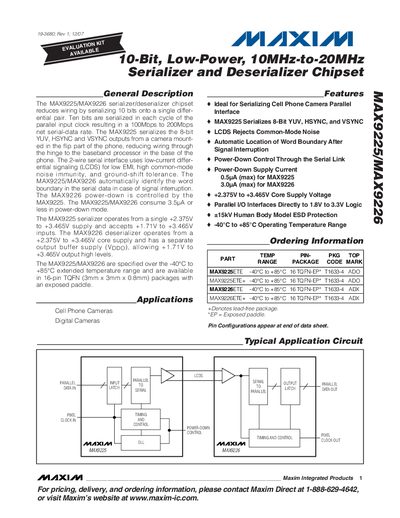

The MAX9225/MAX9226 is a serializer/deserializer chipset ideal for serializing the parallel interface of cell phone cameras. It can serialize 10-bit data onto a single differential pair, reducing wiring. Ten bits are serialized in each cycle of the parallel input clock, resulting in a net serial-data rate of 100Mbps to 200Mbps. The MAX9225 serializes the 8-bit YUV, HSYNC, and VSYNC outputs from a camera mounted in the flip part of the phone, reducing wiring through the hinge to the baseband processor in the base of the phone. The 2-wire serial interface uses low-current differential signaling (LCDS) for low EMI, high common-mode noise immunity, and ground-shift tolerance. In case of signal interruption, the MAX9225/MAX9226 automatically identifies the word boundary in the serial data. The MAX9226 power-down is controlled by the MAX9225. The MAX9225/MAX9226 consume 3.5µA or less in power-down mode. The MAX9225 serializer operates from a single +2.375V to +3.465V supply and accepts +1.71V to +3.465V inputs. The MAX9226 deserializer operates from a +2.375V to +3.465V core supply and has a separate output buffer supply (VDDO), allowing +1.71V to +3.465V output high levels. The MAX9225/MAX9226 are specified over the -40°C to +85°C extended temperature range and are available in 16-pin TQFN (3mm x 3mm x 0.8mm) packages with an exposed paddle.
The MAX9225 and MAX9226 are low‑power 10‑bit serializer/deserializer chipsets designed for cell‑phone camera interfaces. They reduce wiring by converting parallel video data to a single differential pair, supporting data rates from 100 Mbps to 200 Mbps.
The document provides absolute maximum ratings, DC and AC electrical characteristics, timing diagrams, pin descriptions, package information and revision history, enabling designers to integrate the devices into camera and display systems.
| Core supply voltage | +2.375 V to +3.465 V |
|---|---|
| Operating temperature range | -40 °C to +85 °C |
The MAX9225 operates from a single +2.375 V to +3.465 V core supply.
Both devices are specified for operation from –40 °C to +85 °C.
